Fixturing Plate

Sale price $65.00
Add to Wishlist

Guaranteed Safe Checkout

Visa
PayPal
Mastercard
American Express
Fixturing Plate

Fixturing Plate

$65.00

This extremely capable kit will have you covered no matter the job.

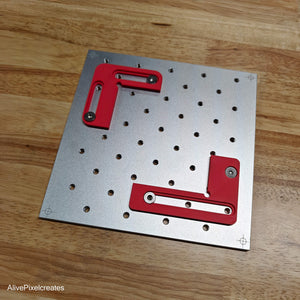

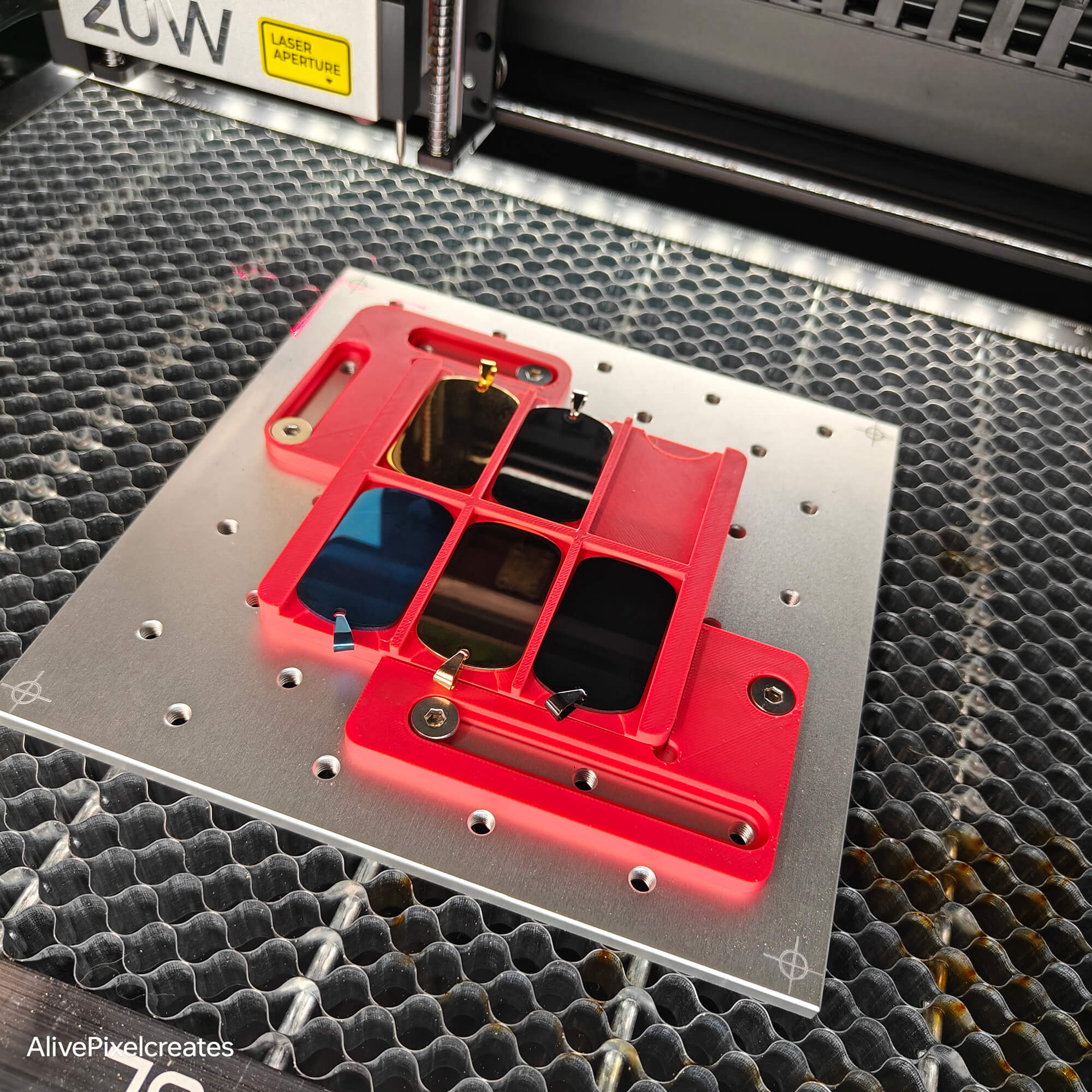

In the manufacturing industry, a fixture plate is a tool used to hold and position workpieces during Lasering or assembly processes. It is a flat plate with a grid of holes that can be used to mount various types of fixtures, such as clamps, vises, and jigs.

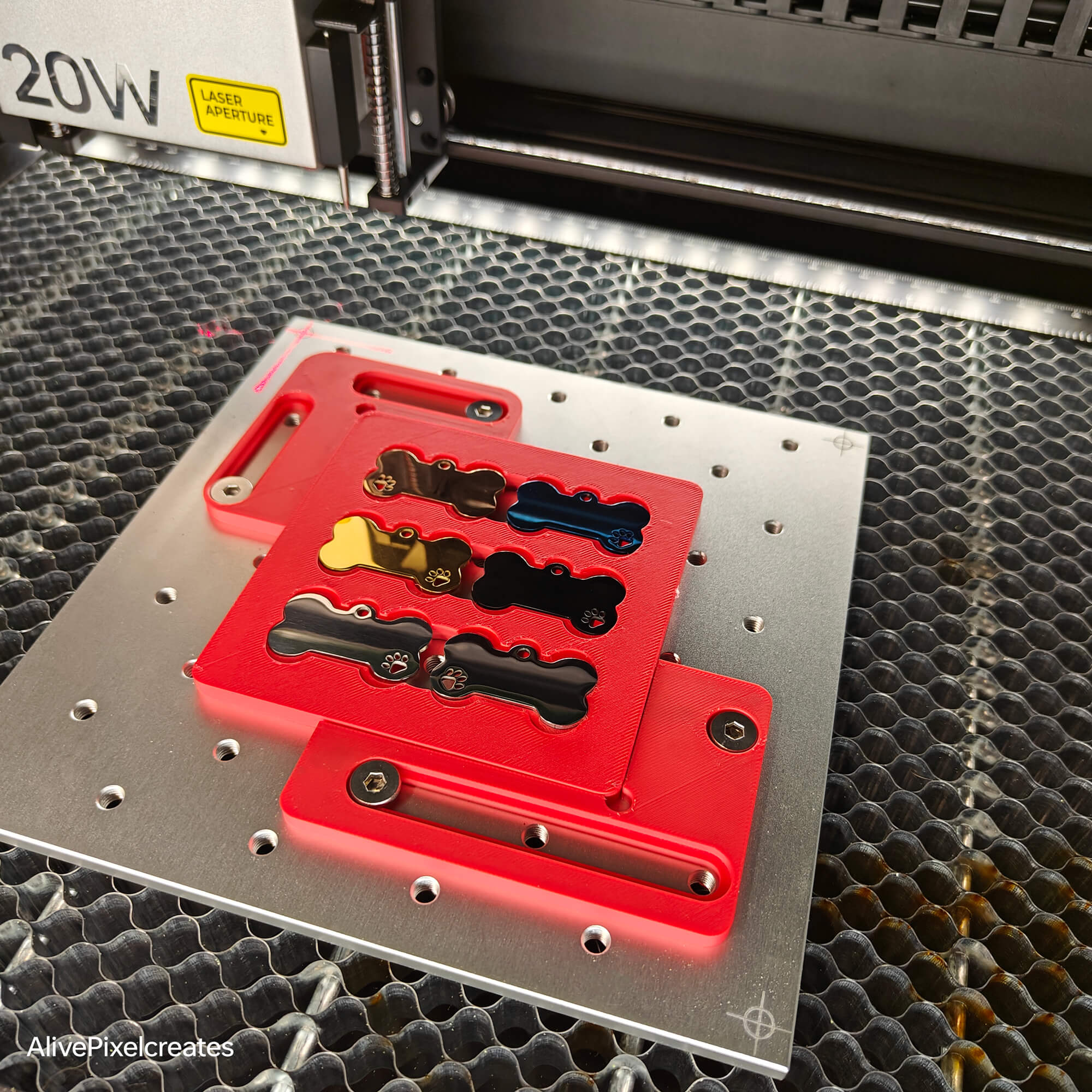

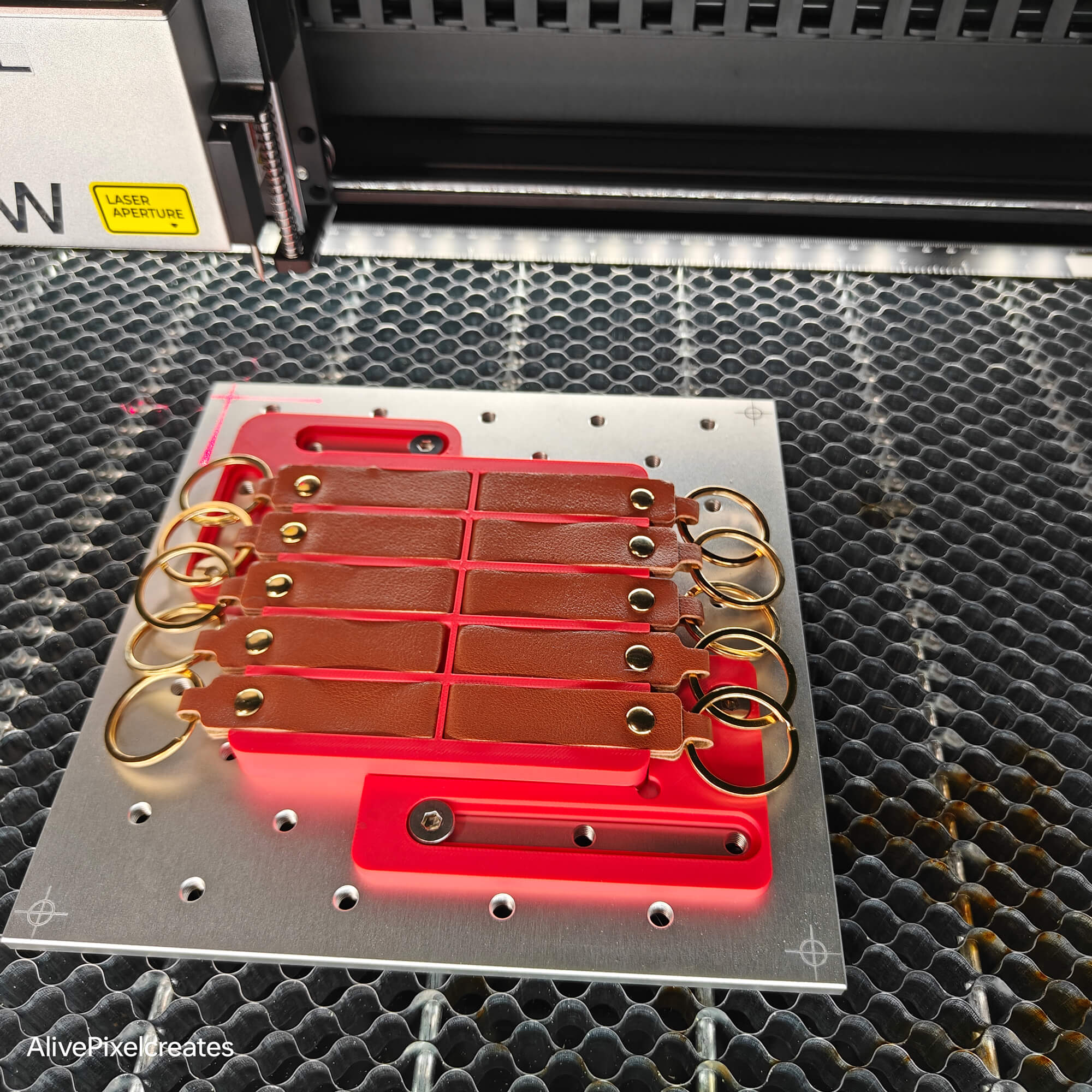

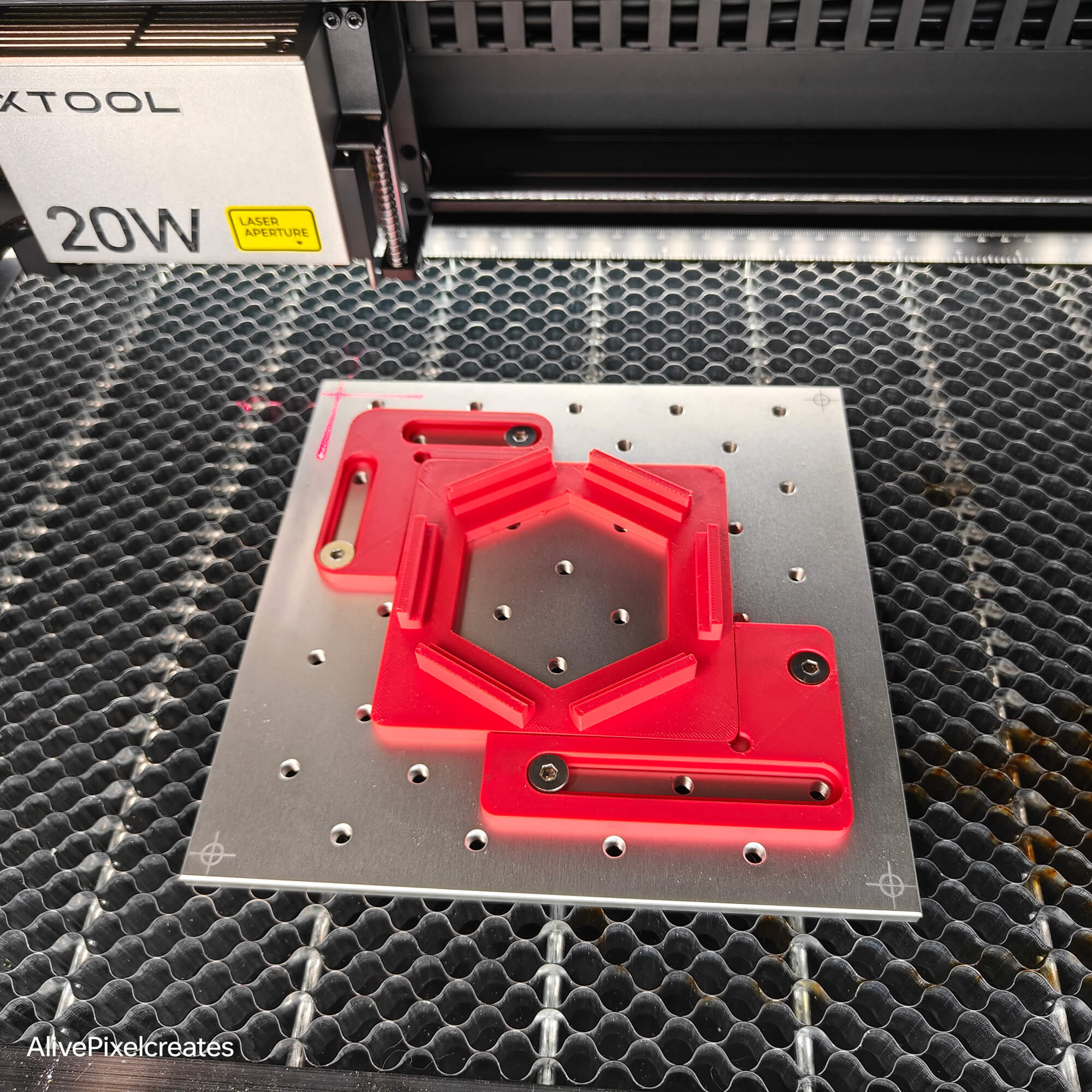

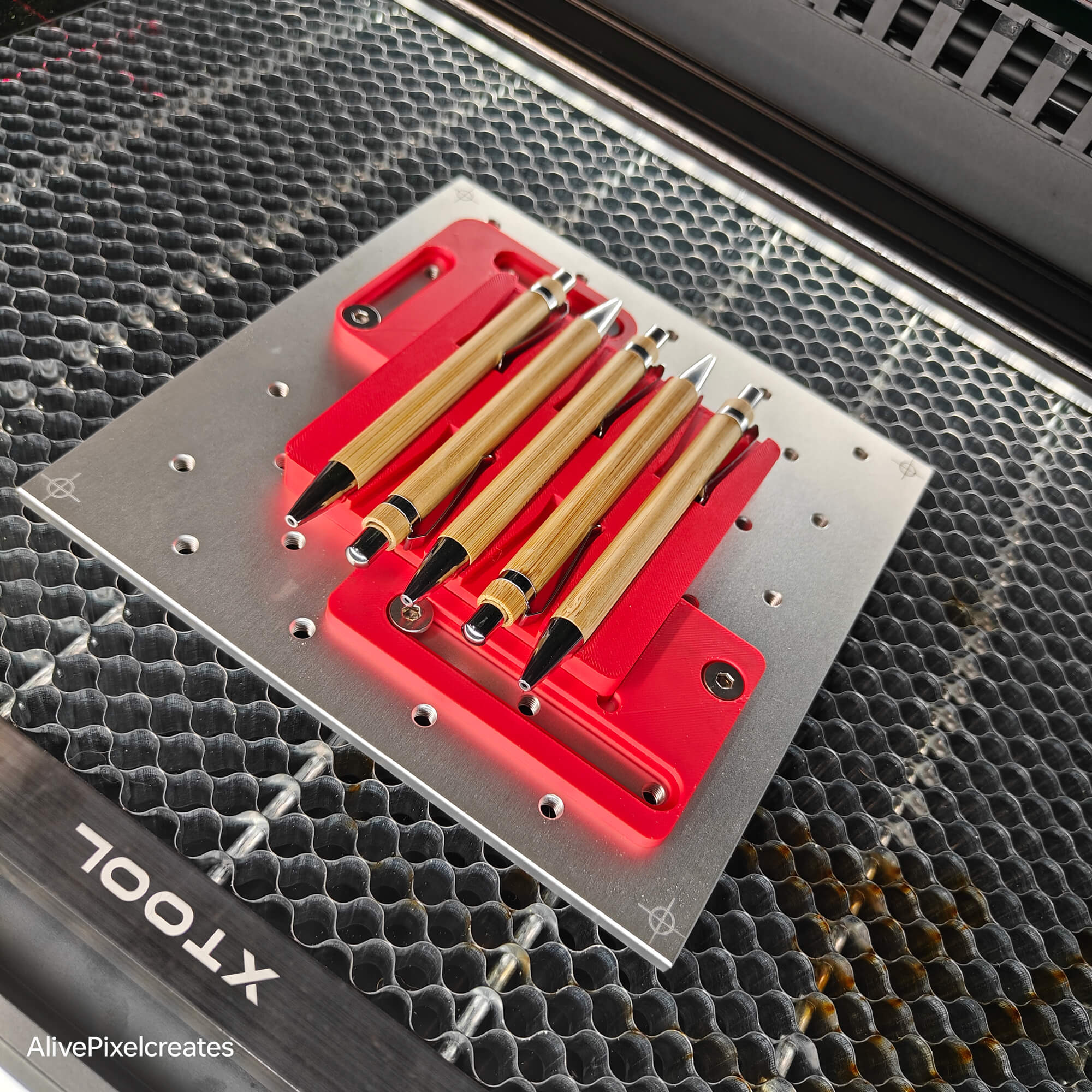

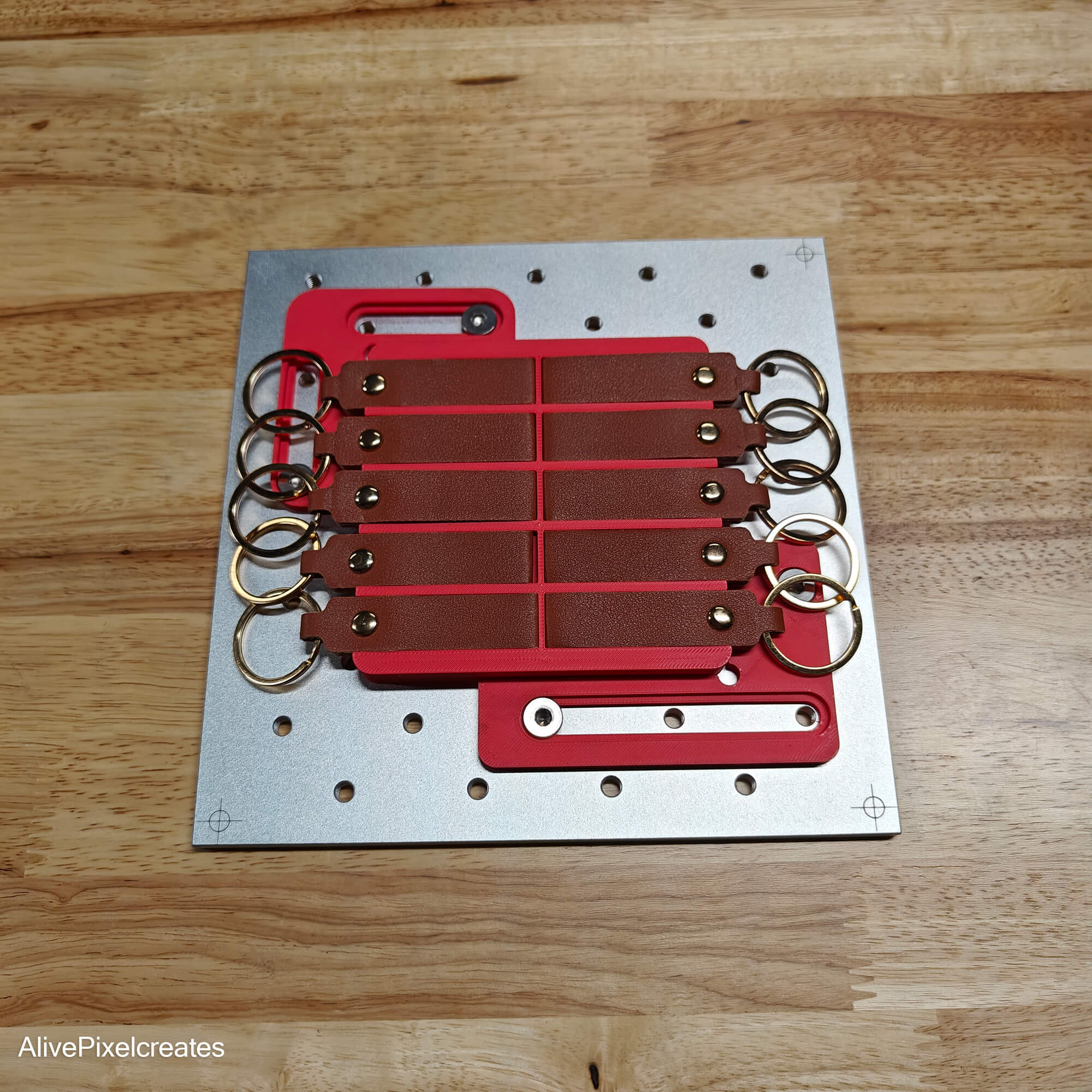

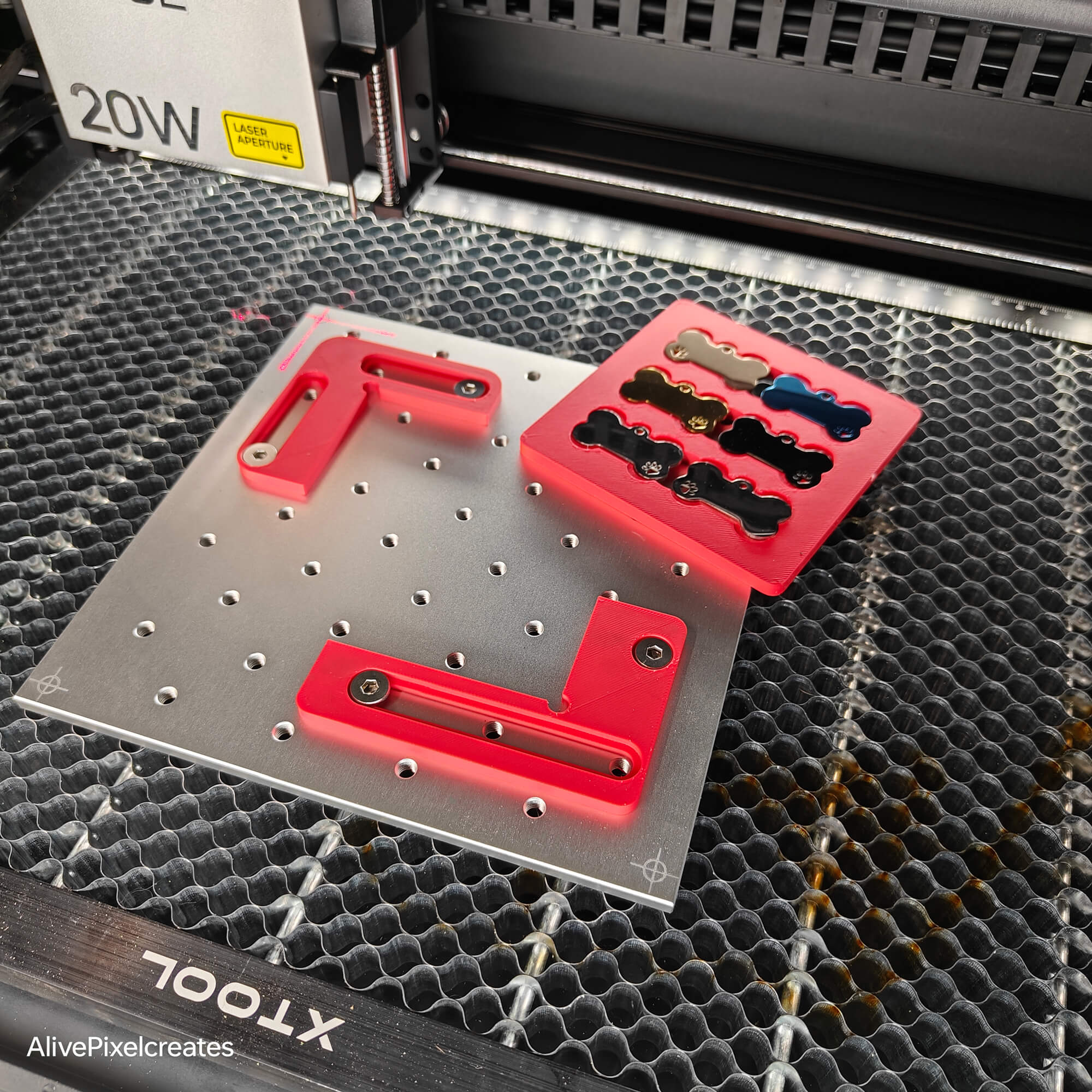

This plate will allowed you to use any jig on the market and set it on the right place always, the registration marks on each corner help you to align and get it square with your machine. The provided template will give you a perfect location for your artwork and expedite your production process.

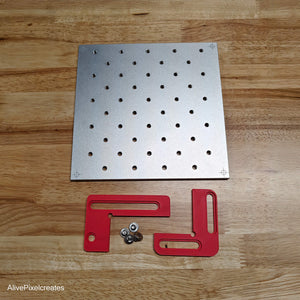

  • Dimensions: of 200mm x 200mm.
  • 6mm treaded holes for screws.
  • Made of 100% aluminum.
  • Template in XCS and SVG
  • Plastic fixture accessories.
  • M6 low profile Screws – 4mm hex

 How to Adjust Your Template
